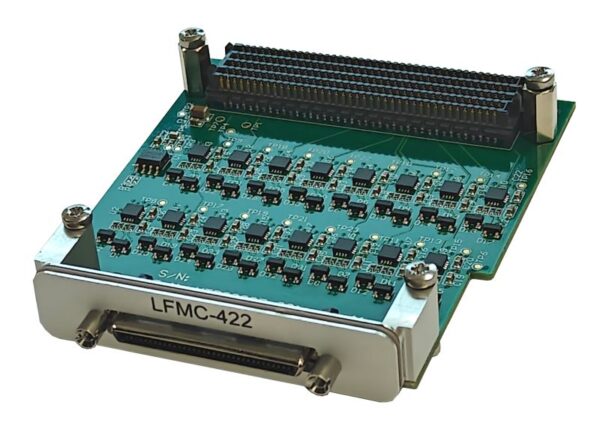

LFMC-RS422 is an HPC FMC module with RS422 input output support on high density SCSI-68 VHDCI connector
Product Description
FMC Module ideal platform for: Parallel bus handling and I/O
Characteristics
- FMC HPC module
- 16 RS422 bidirectional buffers: Half or full duplex, RX and TX termination configurable, Up to 20 Mbps
- 1.8V compatible
Environmental
- Commercial operating temperatures (N-grade): +0°C to +50°C, air cooled
- Extended operating temperatures (E-grade): -0°C to +70°C, air cooled
- Extended operating temperatures (K-grade): -40°C to +85°C, air cooled
Power consumption – user FW dependent
Mechanical – Standard single slot FMC
Firmware (available through the LVD FPGA FDK – to be ordered separately)
- PCIe
- 4 channel DMA
- Example design
- Full source code
Software (available through the LVD FPGA SDK – to be ordered separately) – Full source code
