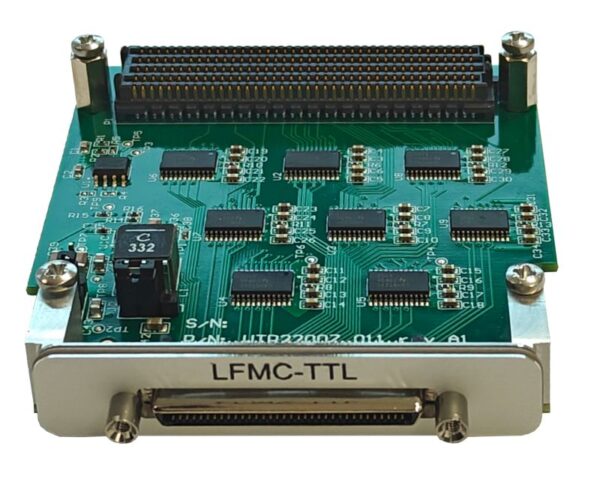

LFMC-TTL is an HPC FMC module with 64 TTL/LVTTL input output support on high density SCSI-68 VHDCI connector
Product Description
Characteristics
- FMC HPC module
- 64 TTL / LVTTL I/O: Direction control in bank of 8, 3.3V or 5V I/O voltage level
- 1.8V FMC compatible
Environmental
- Commercial operating temperatures (N-grade): +0°C to +50°C, air cooled
- Extended operating temperatures (E-grade): -0°C to +70°C, air cooled
- Extended operating temperatures (K-grade): -40°C to +85°C, air cooled
Power consumption – User FW dependent
Mechanical – Standard single slot FMC
Firmware (available through the LVD FPGA FDK – to be ordered separately)
- PCIe
- 4 channel DMA
- Example design
- Full source code
Software (available through the LVD FPGA SDK – to be ordered separately)
Full source code
