XMC FPGA Board with IO – LXMC-X101 is a Xilinx Ultrascale+ (Artix or Kintex) XMC board with pluggable frontend for a wide variety of I/O and high speed serial communication purpose
Product Description

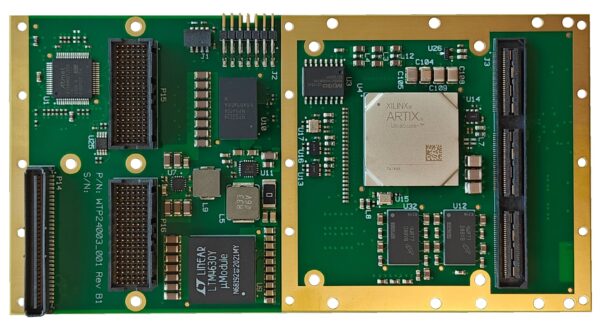

LXMC-X101 – VITA 42 XMC FPGA Board with IO
Ideal platform for:
- Digital and Analog I/O
- RS422/RS485 serial bus handling
- 10GBit Ethernet solutions
- Low demanding DSP processing
Characteristics
- XMC FPGA Board
- FPGAs: XCAU25P, XCKU3P, XCKU5P
- 2GB 32bit DDR4 memory
- I/O slot
Environmental
- Commercial operating temperature (N-grade): 0°C to +50°C, air cooled
- Extended operating temperature (E-grade): 0°C to +70°C, air cooled
- Rugged Conduction cooled (RC-grade): -40 to +85 °C
Power consumption
- 5 – 15 W (user FW dependent, excluding I/O)
Mechanical
- VITA 42
Firmware (available through the LVD FPGA FDK – to be ordered separately)
- PCIe end-point
- 4 channel DMA engine
- Example design
- Full source code
Software (available through the LVD FPGA SDK – to be ordered separately)
- Linux driver
- RTX driver (available on demand)
- Full source code
Certification
- REACH / RoHS compliant
