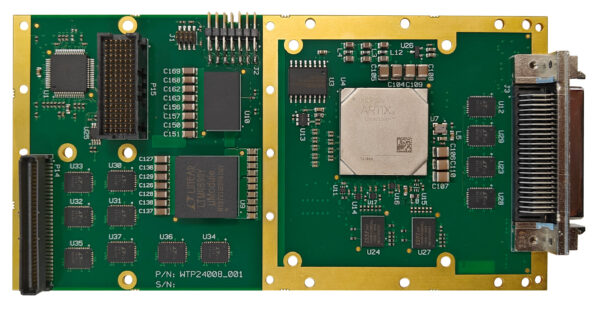

LXMC-X105 is XMC Board with a Xilinx Ultrascale+ (Artix or Kintex) XMC board with configurable RS232/RS485/RS422 interfaces.
Product Description
Characteristics of the LXMC-X105 is XMC Board
- FPGAs: XCAU25P, XCKU3P, XCKU5P
- 32MB static RAM
- Programmable interfaces based on LTC2872
- 20Mbps RS485 and 500kbps RS232
- P14 configuration: 16 RS422 output and 16 RS 422 input. Configurable as 8x HDLC lines, 32 RS232
- Front panel configuration: 8 RS422 output and 8 RS422 input, Configurable as 4x HDLC, 16 RS232
Environmental
- Commercial operating temperature (N-grade): 0°C to +55°C, air cooled
- Extended operating temperature (E-grade): -25°C to +70°C, air cooled
- Industrial operating temperature (K-grade): -40°C to +70°C, air cooled
- Rugged Conduction cooled (RC-grade): -40°C to +85 °C – no front panel
Power consumption – 5 – 15 W (user FW dependent)
Mechanical – VITA 42
Certification – REACH / RoHS compliant
Firmware (available through the LVD FPGA FDK – to be ordered separately)
- PCIe end-point
- multi channel DMA engine
- HDLC serial handling
- Full source code
Software
- Linux Driver
- VxWorks driver
- Full source code
