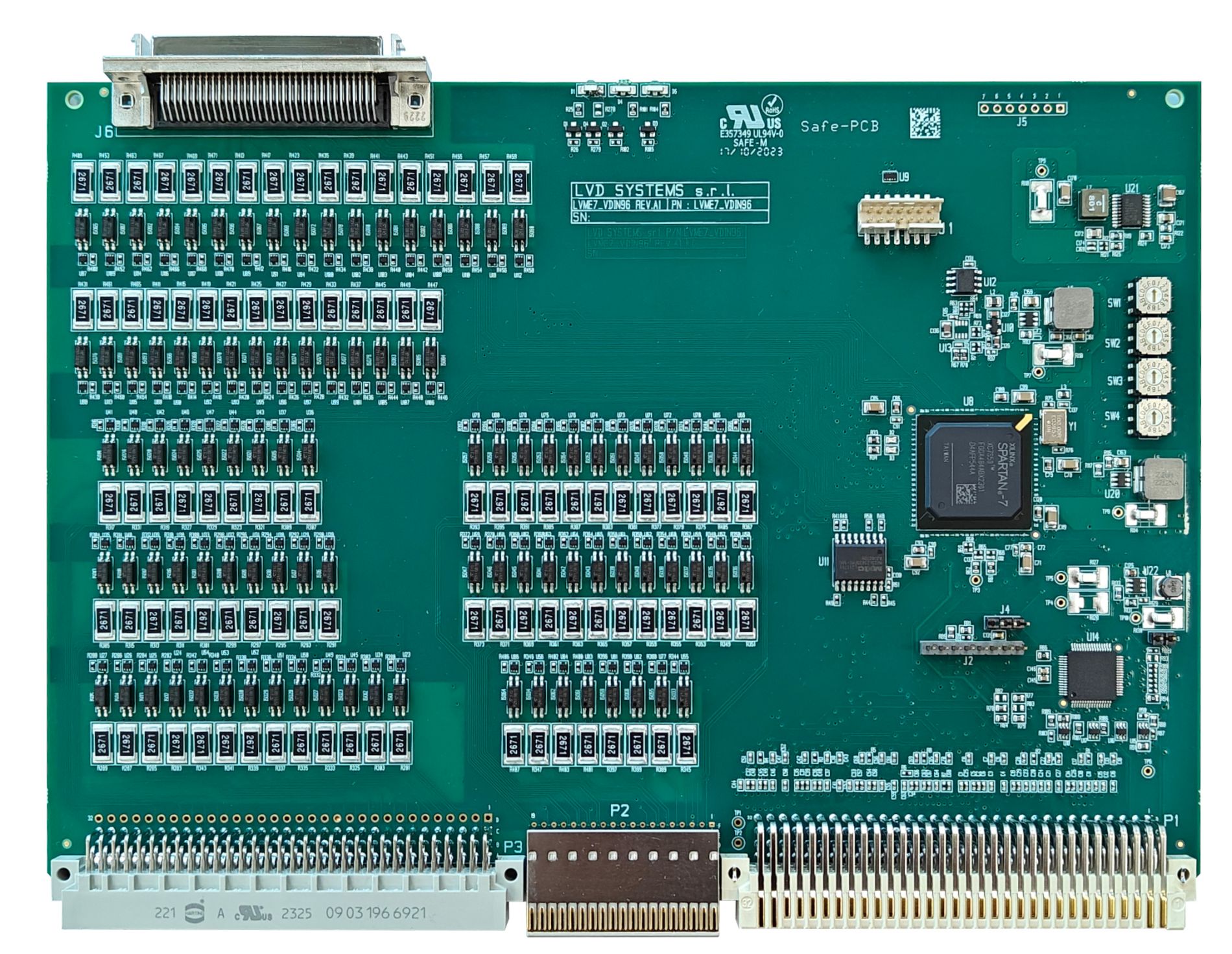

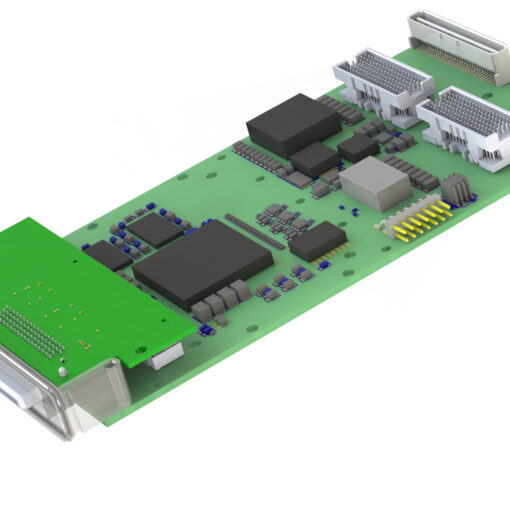

The LVME7 VDIN96 is a 6U VME board that offers up to 96 opto coupled digital inputs on one 6U VMEbus board. It is ideally suited for use in industrial control and simulation systems which require a high number of parallel inputs. The VDIN 96 is available in different voltage I/O versions and it is based on a Xilinx XC7S50 1FGGA484I device
Product Description
The specification of the LVME7 VDIN96 – 6U VME board are:
Flash
- 16MB QSPI NOR FLASH
- 4Kbit I2C FRAM memory
Interfaces
- VME slave A24/D16 – A16/D16
- VME Hot pluggable support
Other
- 1 LED bicolor POST (RED/GREEN)
- 1 Power LED (GREEN)
- 1 Live Insertion LED (BLUE)
- SCSI Connector, 68 Positions
- DAC: 4x TI
Digital Input Characteristics
- 96 digital opto-isolated input channels
- Change of state and pattern recognition interrupt
- Input via P0, P2 and front panel (68 pin SCSI connector)
- Counter/Timer with trigger/gate activation
- 1 MHz max input frequency
Environmental characteristic
- Operating temperature -40°, +85° C
- Humidity 0..80% non condensing
It is based on the LVME7 generic VME slave
architecture.
